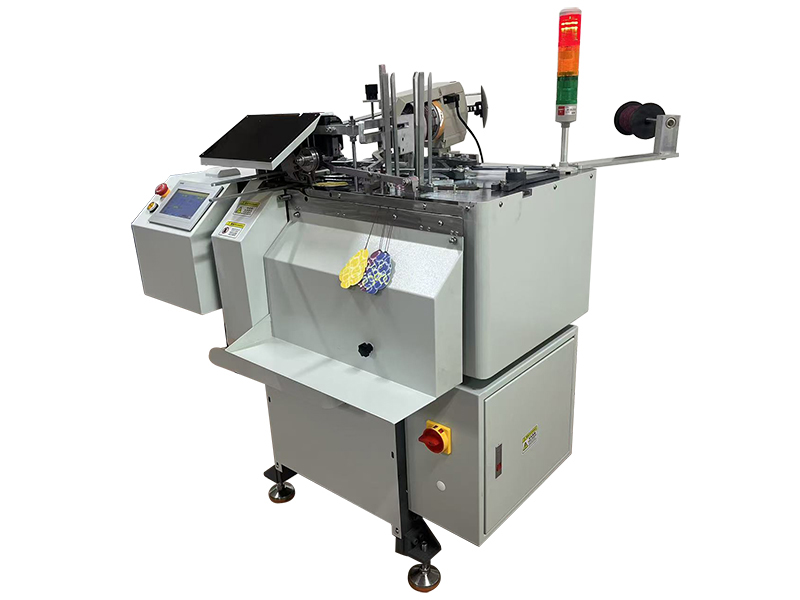

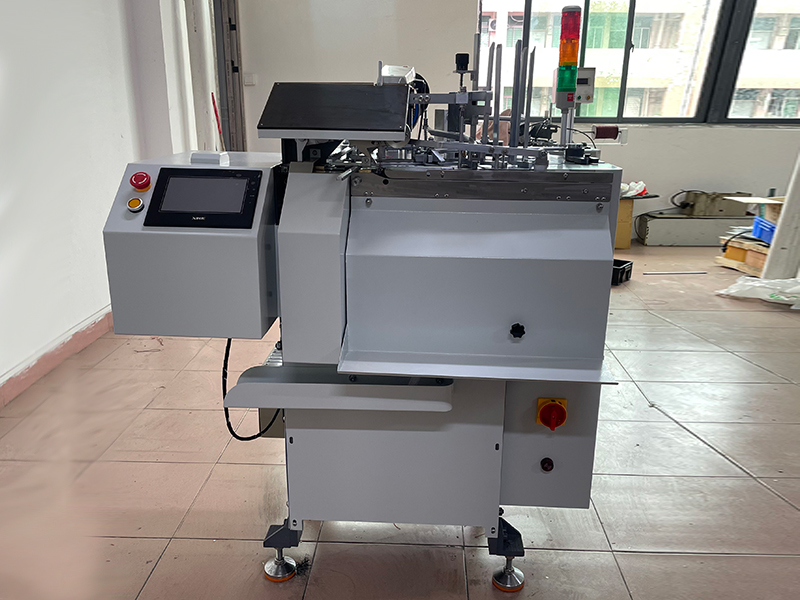

Automatic Paper Air Freshener Stringing Machine, TL-UM8-U2

Automatic Paper Air Freshener Stringing Machine, TL-UM8-U2
Automatic Paper Air Freshener Stringing Machine, TL-UM8-U2 Automatic Paper Air Freshener Stringing Machine, TL-UM8-U2

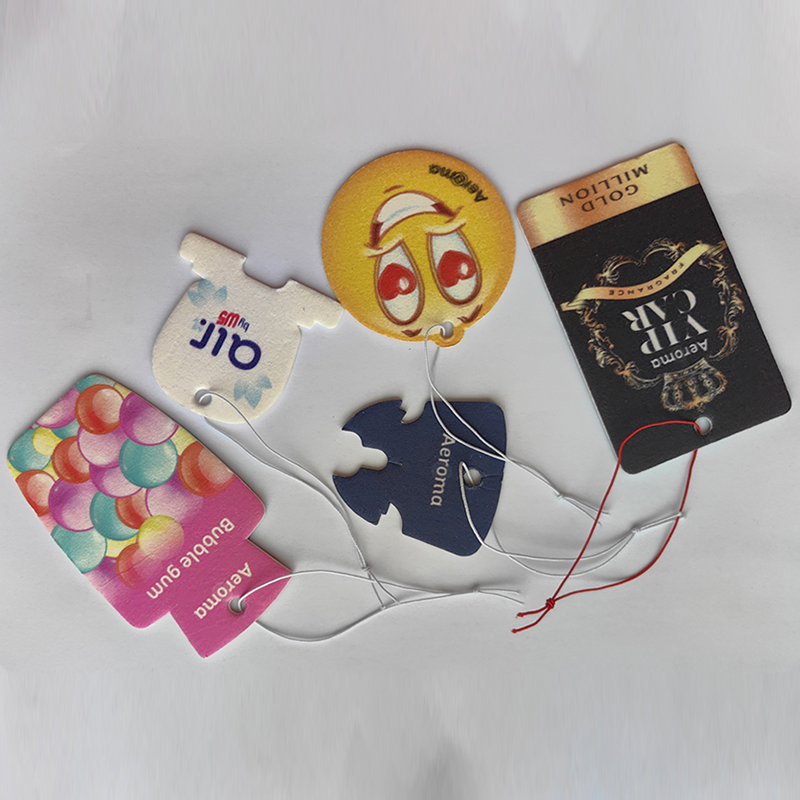

Hang Tag Samples

Automatic paper air freshener stringing machine is our company’s fourth-generation model developed specifically for threading car air fresheners. Designed to meet the characteristics of popular European and American-style car air fresheners on the market, this machine automatically completes tag feeding, punching, stringing, knotting, and counting in one seamless process.

Tailored for the car paper air freshener industry, the equipment is easy to set up, maintain, and operate, effectively eliminating the hassle of manual threading. It is an essential tool for manufacturers of car paper air fresheners.

Compared to the TL-LY8-U2 model, this machine offers greater stability, faster speed, and quieter operation.

Main Features: PLC control system + touchscreen + frequency converter + sensors + indexing device driven by gear box + counter

Details

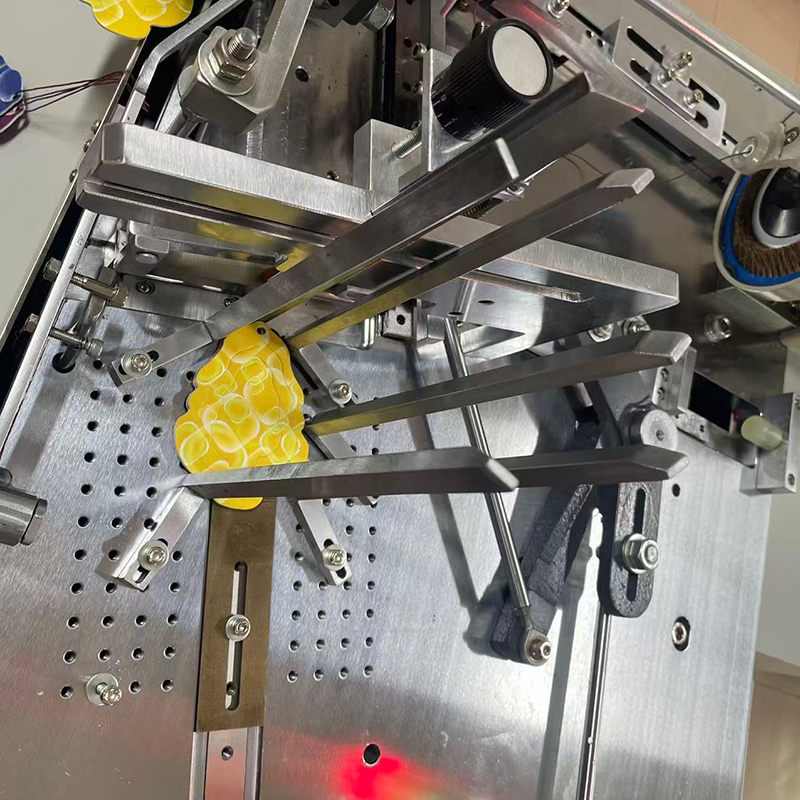

Tag feeding deviceTag feeding device

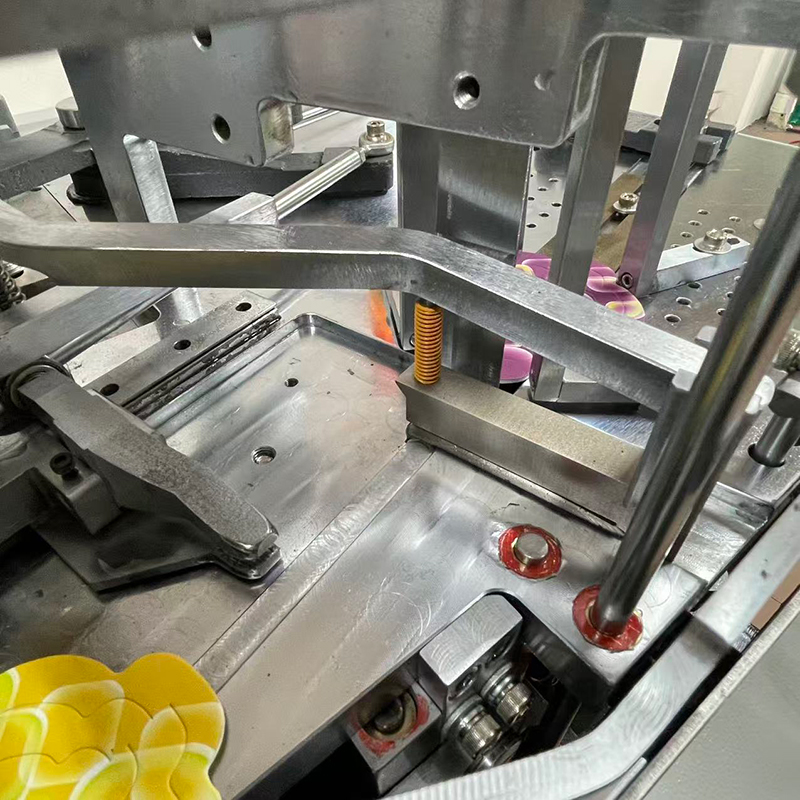

Hole punching unitHole punching unit
String feeding deviceString feeding device

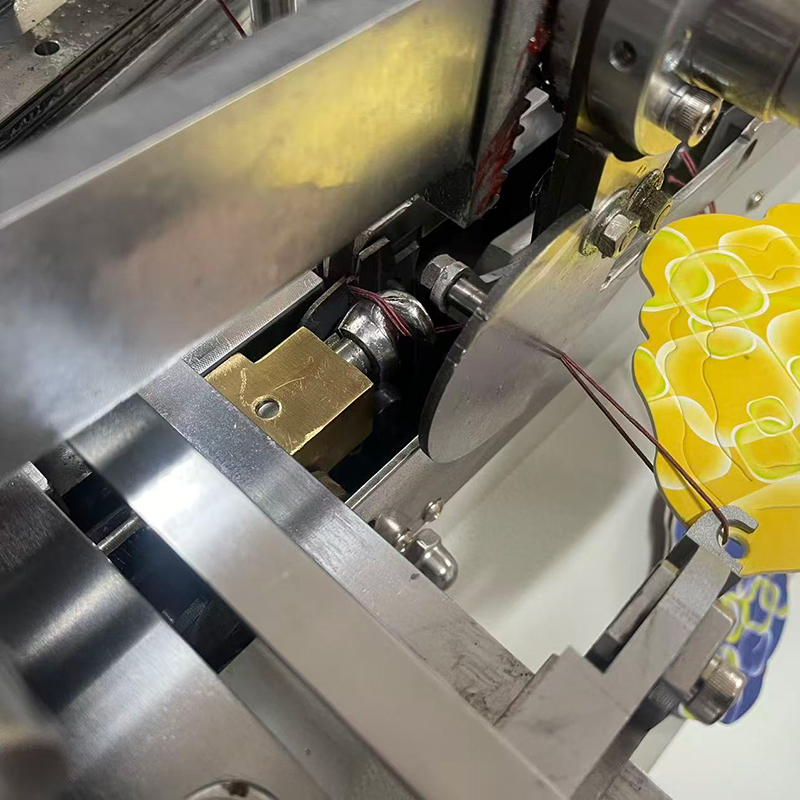

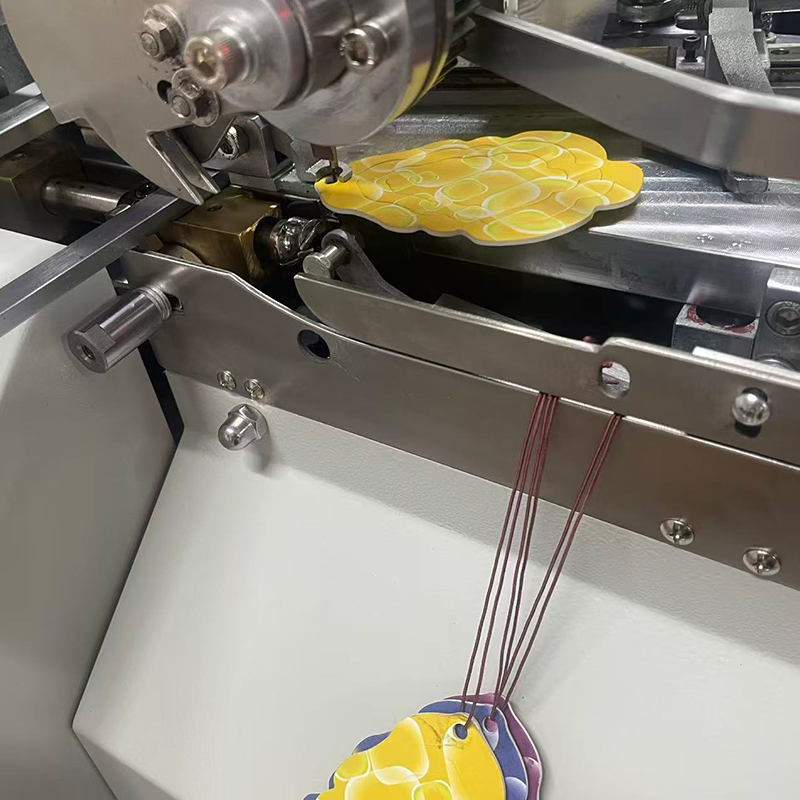

Knotting mechanismKnotting mechanism

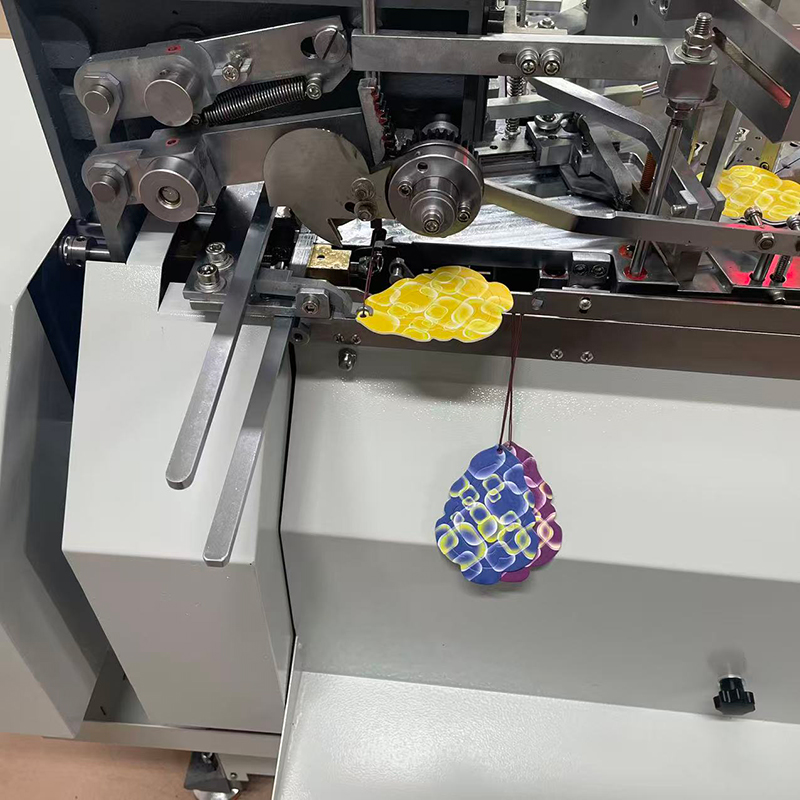

Finished product discharging unitFinished product discharging unit
Specifications
Hang Tag Stringing Machine
Model TL-UM8-U2
Speed 3600-6000pcs/h
Cutting method Cold cut
Weight 450kg
Dimensions 1100*1000*1200mm
Power supply 220V, single phase, 50/60Hz
Power 0.75kW
Hang Tag
Tag material Paper air fresheners
Tag thickness 200-700gsm (for other thicknesses, machine is customizable per your sample)
Min. tag size 20*35mm
Max. tag size 90*150mm
Tag hole diameter 4.0mm, 5.0mm
Tag shape Various irregular shapes
String thickness 0.3-1.2mm
String material Elastic string
Knotted string working length 80-200mm (tail is excluded)
Knotted string tail length 15-20mm
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing the right type of tag stringing machine to meet you or your customers’ requirements.
Inquiry
Other Products

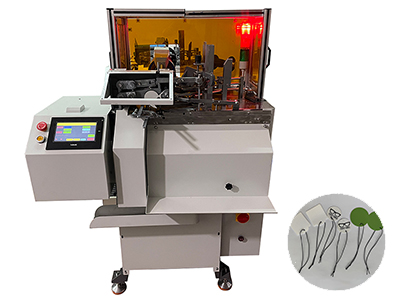

Automatic Tag Stringing Machine, TL-UM8
Automatic Tag Stringing Machine, TL-UM8

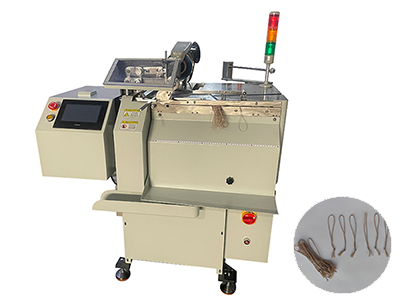

Automatic Hang Tag Tying Machine, UM-HE3-K
