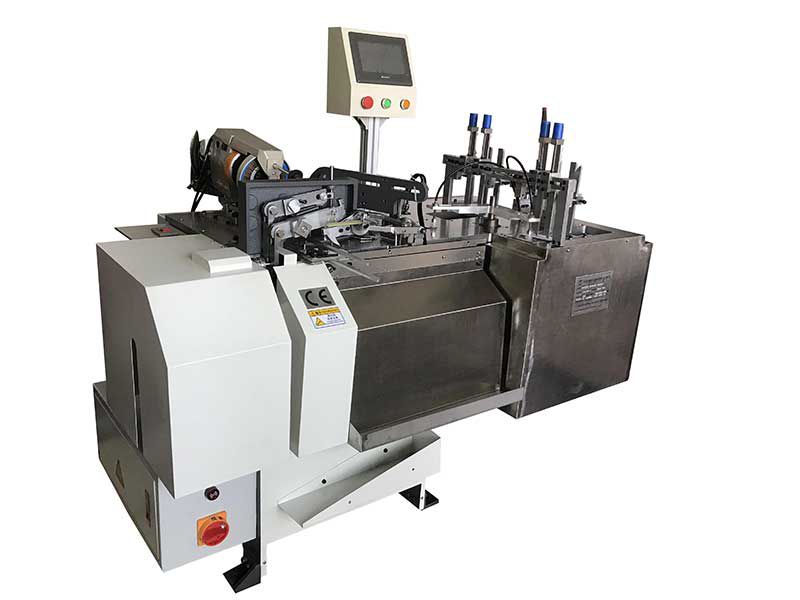

Automatic Dual Hang Tag Stringer, LM-LY3-CS

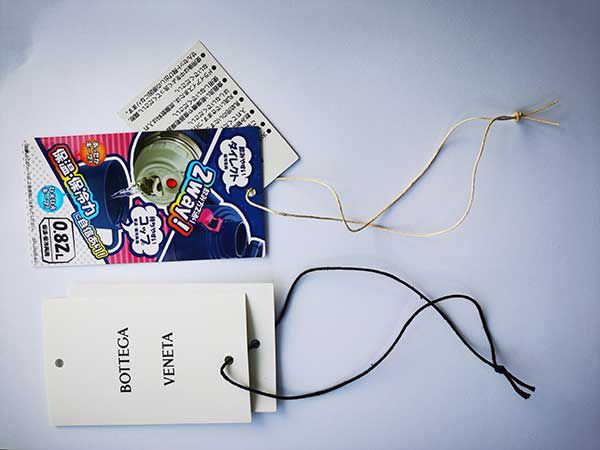

Fully automatic dual hang tag stringer is primarily designed for stringing and tying of 2 hang tags with different sizes simultaneously. Besides, it is also suitable for single hang tag stringing. This tag stringing machine can automatically accomplish tag loading, stringing, knotting and counting in one pass.
Specifications
| Hang Tag Stringing Machine | |
| Model | LM-LY3-CS |
| Speed | 3500-4000pcs/hr |
| Cutting method | Cold cut |
| Weight | 650kg |
| Dimensions | 1120*1350*1490mm |
| Power supply | 220V, single phase |
| Power | 1.6KW |
| Hang Tag | |
| Tag material | Paper tag, plastic tag |
| Tag thickness | 150gsm-700gsm (for other thicknesses, machine is customizable per your sample) |
| Min. tag size | 20*35mm |
| Max. tag size | 90*150mm |
| Tag hole diameter | 3.0mm, 4.0mm, 5.0mm |
| Tag shape | Rectangle, square, round, oval, and other regular shapes |
| String thickness | 0.3-2.1mm, ribbon width:< =4mm |
| String material | Cotton string, fiber string, nylon string, ribbon, etc. |
| Knotted string working length | 80-200mm (tail is excluded) |
| Knotted string tail length | 10-15mm |
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing
machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for
punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can
provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing
the right type of tag stringing machine to meet you or your customers’ requirements.
