Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8C

Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8C
Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8C Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8C
Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8C

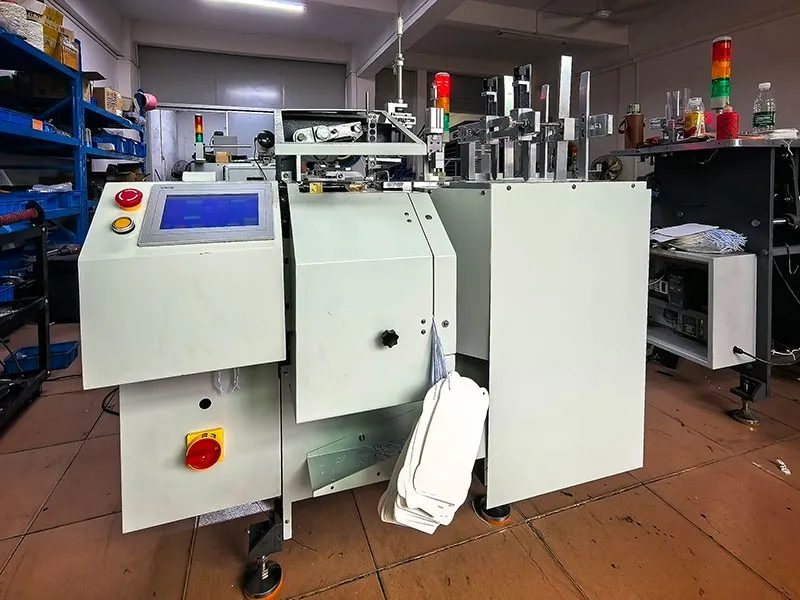

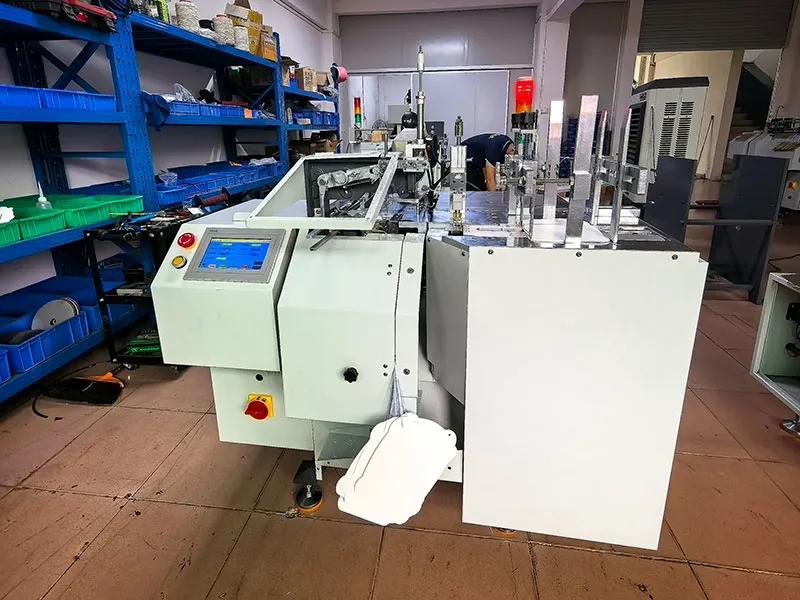

Designed with a side-position punching system, the automatic large-sized hang tag stringing machine is an innovative piece of equipment independently developed by our company for commonly used European- and American-style hang tags. It supports a maximum tag size of 160×210 mm (width × length).

The machine automatically completes tag loading, side-position hole punching, stringing, knotting, and counting in a single integrated process. Completing all operations in a single process significantly improves production efficiency while effectively reducing labor costs.

Configurations

The stringing machine is easy to operate and quick to learn, with the standard and optional configurations including: PLC system, touch screen, frequency inverter, sensors, servo motor, optional button control.

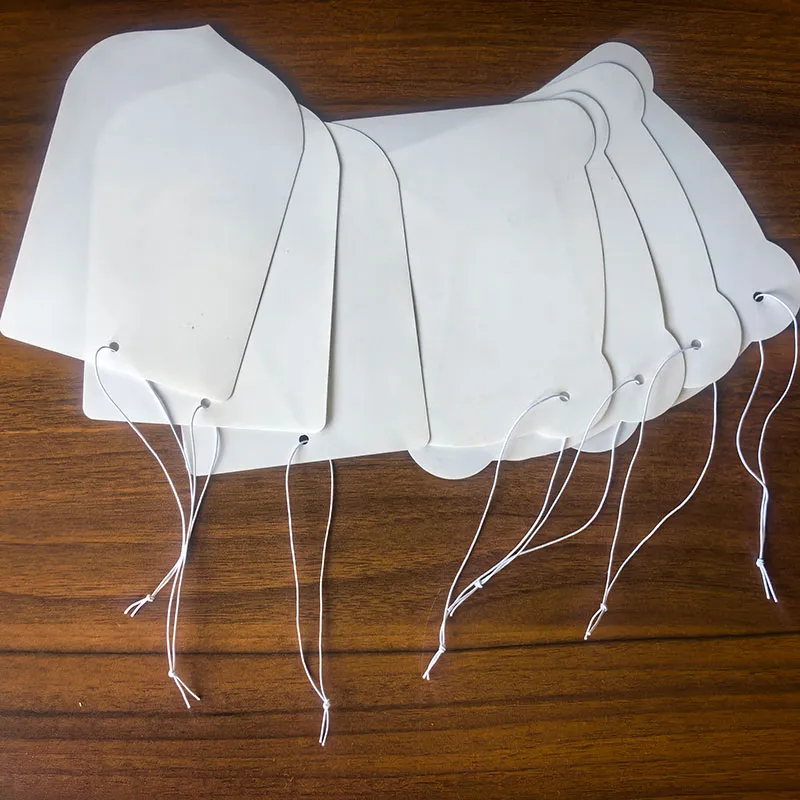

Applicable Hang Tag Shapes
Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CRectangle
Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CRound
Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8COval
Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CSquare
Hang Tag Production Process

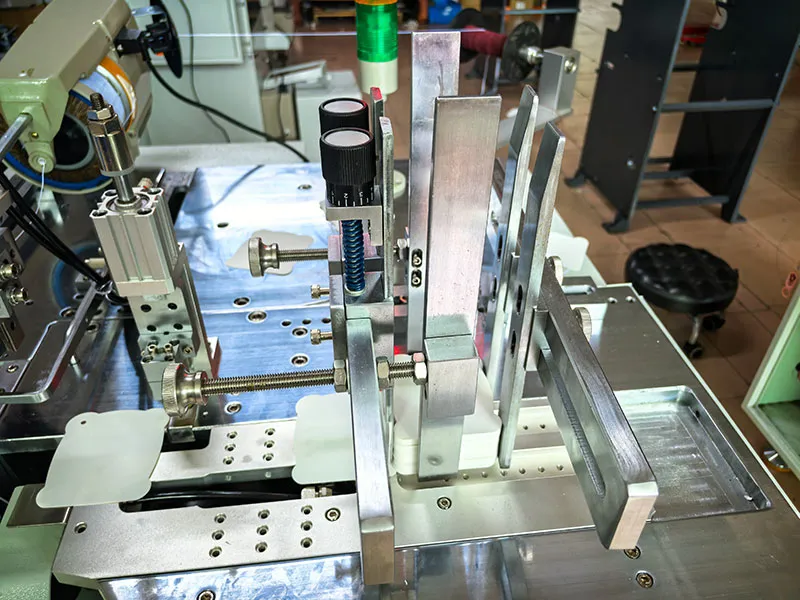

Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CTag Loading (Feeding)

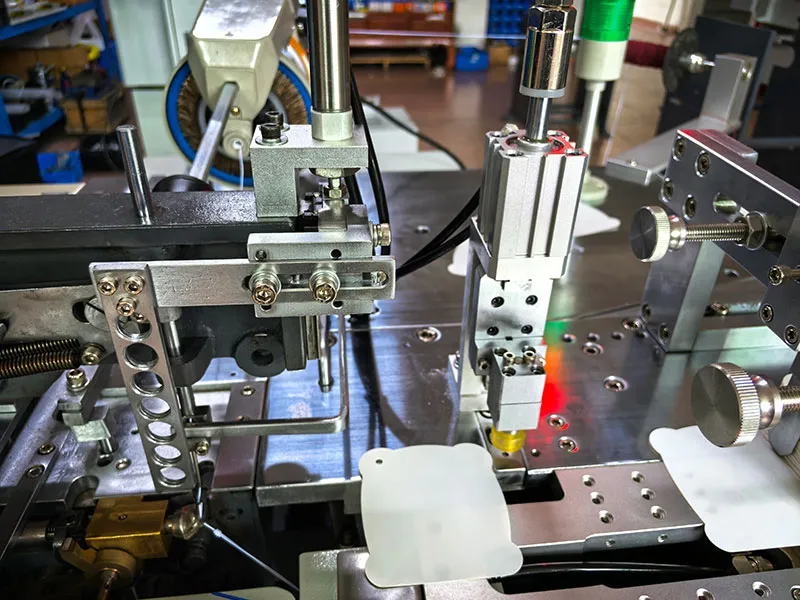

Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CPunching

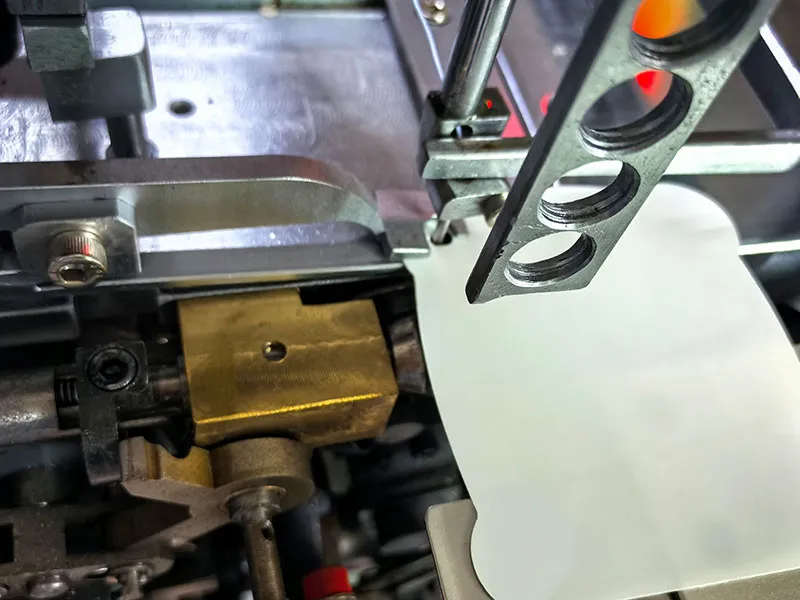

Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CStringing

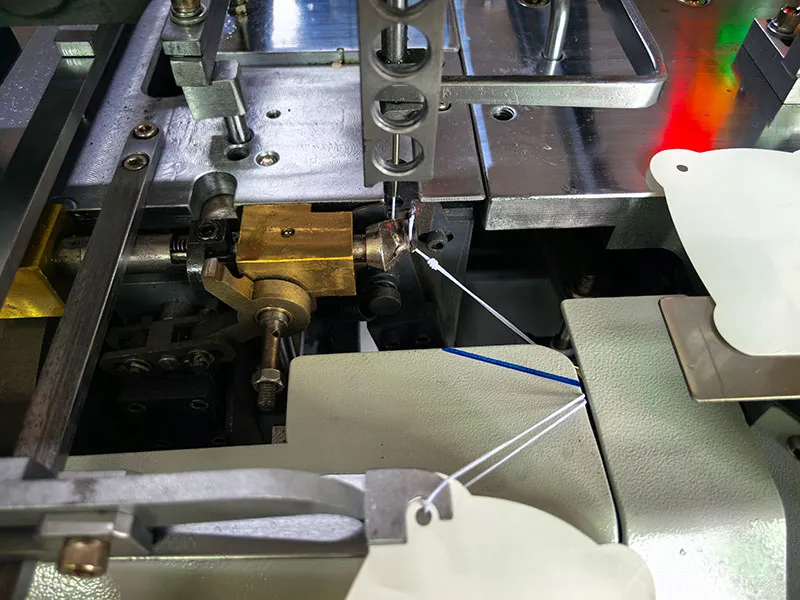

Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8CKnotting
Specifications of Hang Tag Stringing Machine
Hang Tag Stringing Machine
Model TL-UM8C
Speed 2500-3000pcs/hr
Cutting method Cold cut
Weight 450kg
Dimensions 1100*1150*1300mm
Power supply 220V, single phase, 50/60Hz
Power 0.75kW
Hang Tag
Tag material Paper tag, plastic tag
Tag thickness 200gsm-700gsm (for other thickness options, the machine is customizable per your sample)
Min. tag size 80*90mm
Max. tag size 160*210mm
Tag hole diameter 3.0mm, 4.0mm, 5.0mm
Tag shape Rectangle, square, round, oval, and other regular shapes
String thickness 0.3-1.2mm
String material Elastic string, cotton string, gold thread, fiber string, nylon string, etc.
Knotted string working length 80-200mm (tail is excluded)
Knotted string tail length 15mm
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing the right type of tag stringing machine to meet you or your customers’ requirements.
