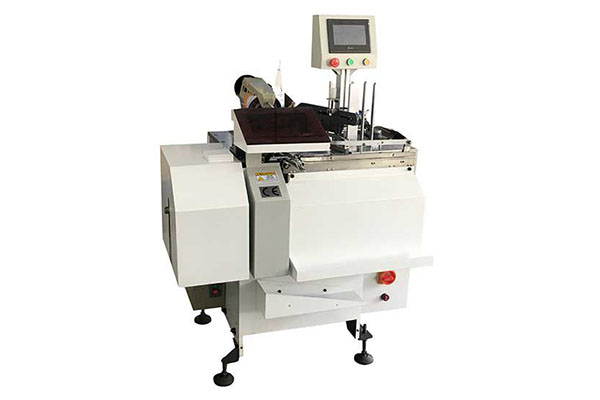

Automatic Hang Tag Elastic Stringing Machine (for Large Size Tags), TL-LY8A

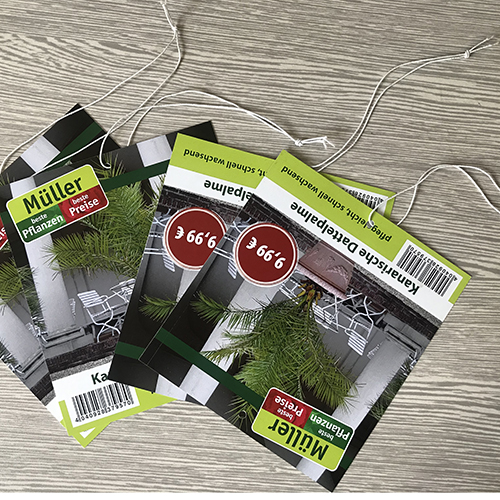

This automatic hang tag stringer is suitable to tie large size hang tags with elastics, such as plant tags, fruit tags, flower tags, etc. This hang tag tying machine is custom manufactured per customer’s specific needs, capable of automatic accomplishing of tag loading, hole punching, stringing, knotting and counting in one pass.
Specifications of Hang Tag Stringing Machine
| Hang Tag Stringing Machine | |
| Model | TL-LY8A |
| Speed | 300-3600pcs/hr |
| Cutting method | Cold cut |
| Weight | 450kg |
| Dimensions | 1120*1020*1490mm |
| Power supply | 220V, single phase |
| Power | 0.75KW |
| Hang Tag | |
| Tag material | Paper tag, plastic tag |
| Tag thickness | 150gsm-700gsm (for other thicknesses, machine is customizable per your sample) |
| Min. tag size | 35*35mm |
| Max. tag size | 135*150mm |
| Tag hole diameter | 3.0mm, 4.0mm, 5.0mm |
| Tag shape | Rectangle, square, round, oval, and other regular shapes |
| String thickness | 0.3-1.2mm |
| String material | Elastic string, cotton string, fiber string, nylon string, etc. |
| Knotted string working length | 170mm (tail is excluded) |
| Knotted string tail length | 10-15mm |
Features
- Easy to use, simple to maintain;
- Efficient alternative to manual stringing, playing essential role in hang tag production;
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing
machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for
punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can
provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing
the right type of tag stringing machine to meet you or your customers’ requirements.
