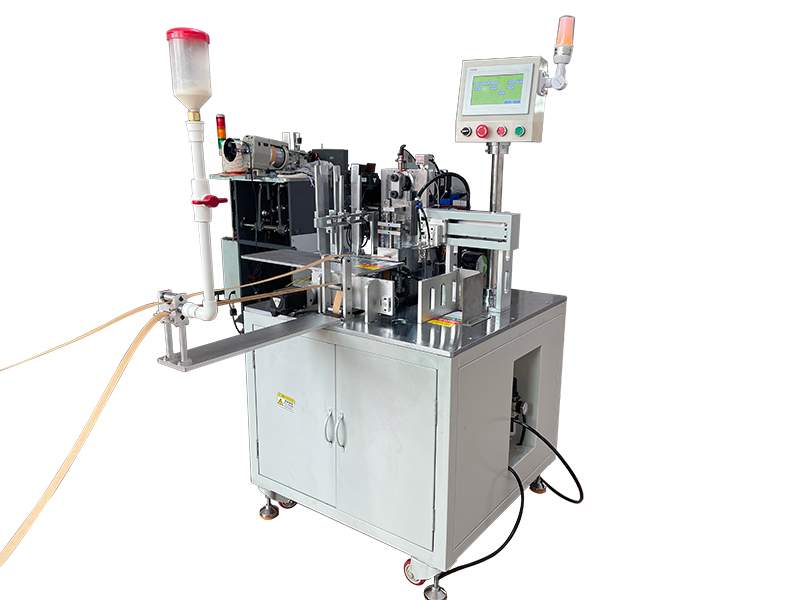

Our automatic hang tag eyeleting machine boosts efficiency, featuring a servo motor and PLC control system. It effortlessly handles feeding, sticker eyelet application, punching, counting, and output, reaching speeds of up to 3600 units per hour. It is well-suited for standard hang tags up to a maximum size of 90×180 mm. For larger tag sizes, we offer our UM-160Z model.
Details Main Components

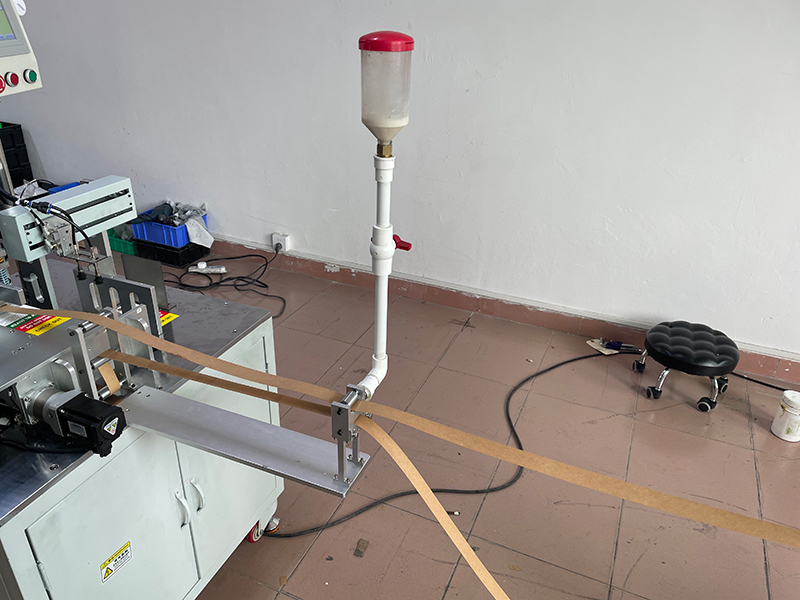

Adhesive application

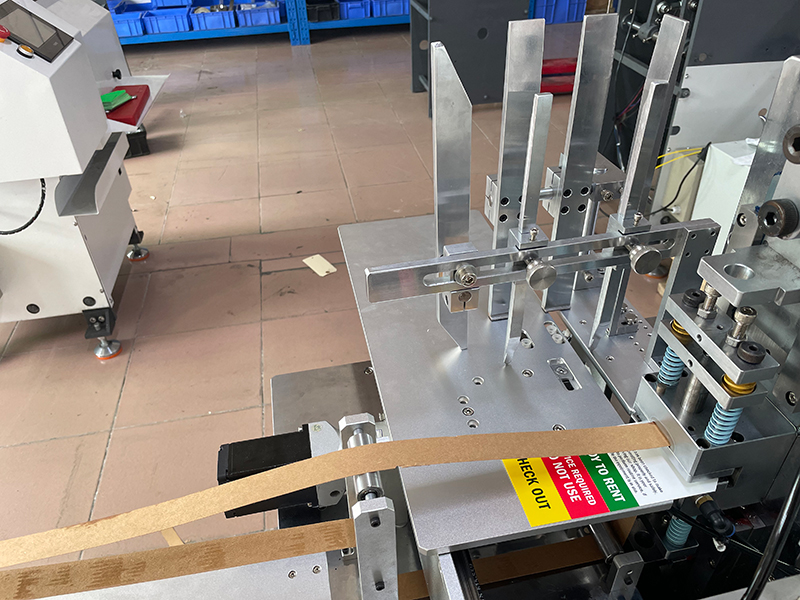

Hang tag positioner

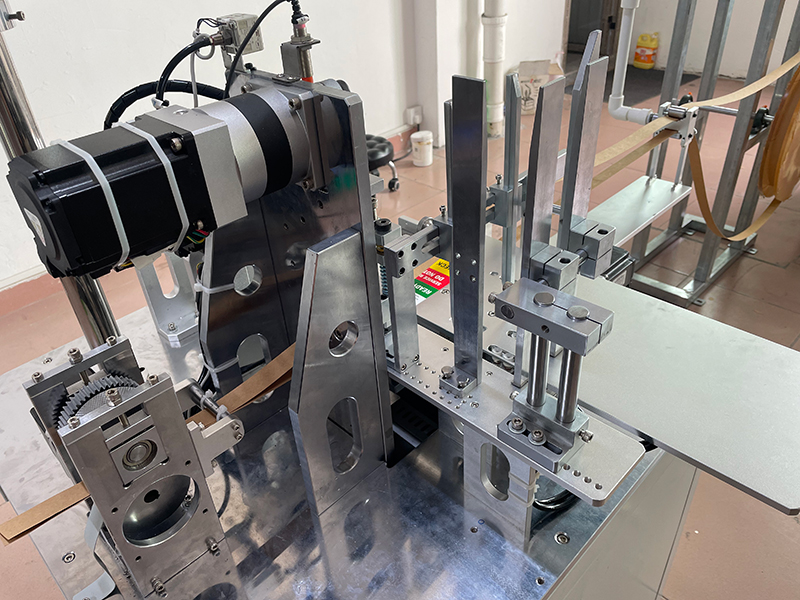

Punching and forming

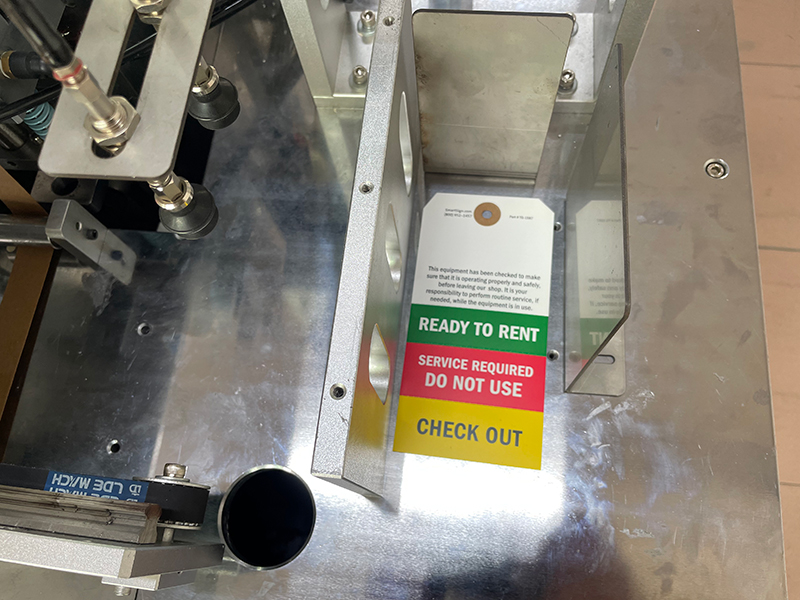

Tag collection box
Specifications
Model
UM-90Z
Min. tag size
30*35mm
Max. tag size
90*180mm
Speed
3600pcs/h
Roll paper width
26mm
Dimensions
750*750*1570mm
Paper roll holder
600*400*1320mm
Machine weight
260kg
Gross weight
310kg
