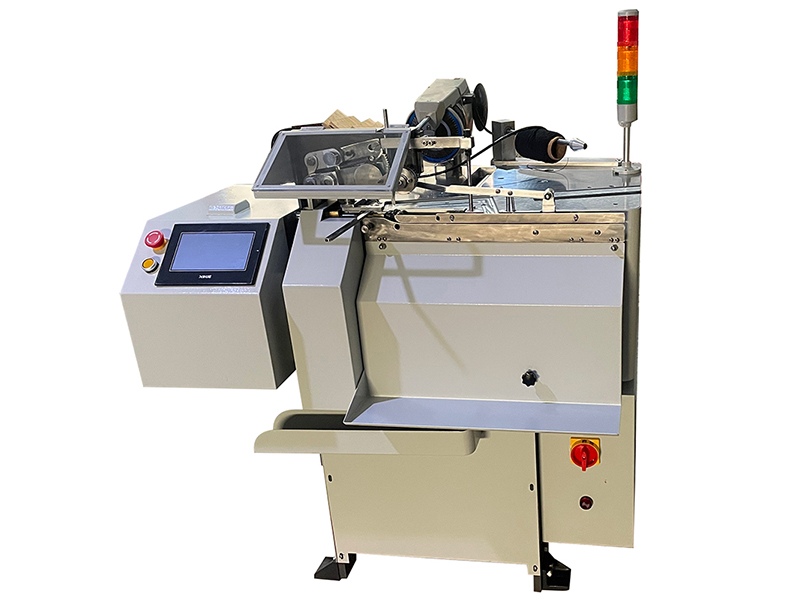

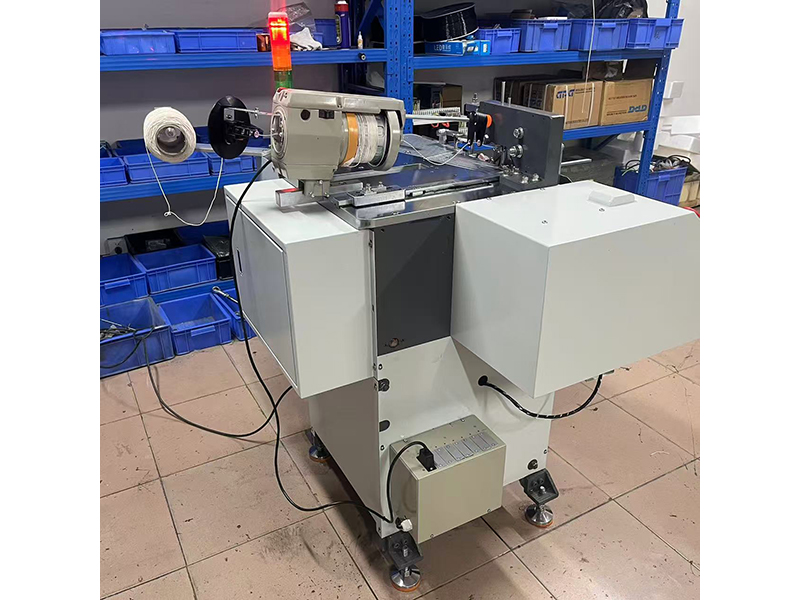

Automatic Hang Tag Tying Machine, UM-TL8-K
Our automatic hang tag tying machine represents the fourth generation of our innovative designs. It efficiently automates the entire process, from feeding to counting, completing each step seamlessly.
Designed specifically for hang tag tying applications, this machine is easy to set up, maintain, and operate, fully eliminating the difficulties associated with manual threading.
This model offers a more elegant design, enhanced stability, faster operation, and reduced noise compared to the TL-LY8-K.
Main Features: PLC control system + touchscreen + frequency converter + sensors + indexing device driven by gear box + counter
Details
Main Components
Main Components
String feeding device

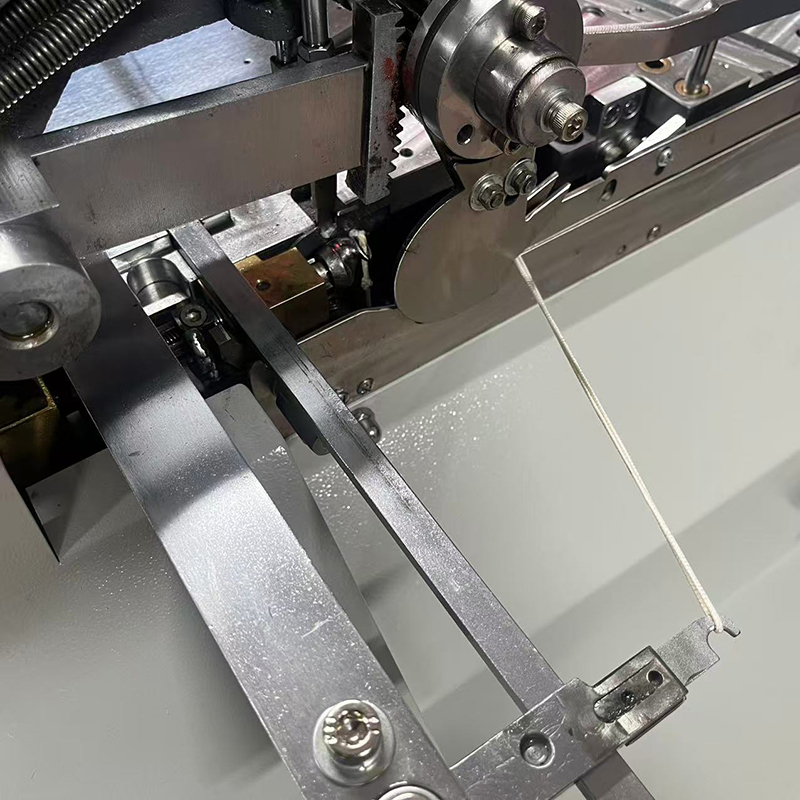

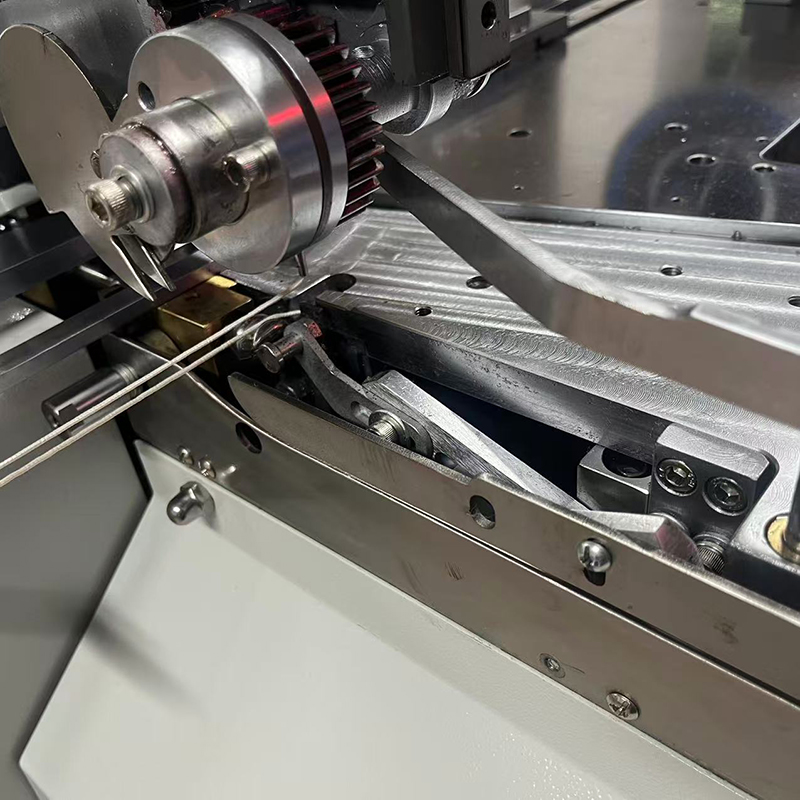

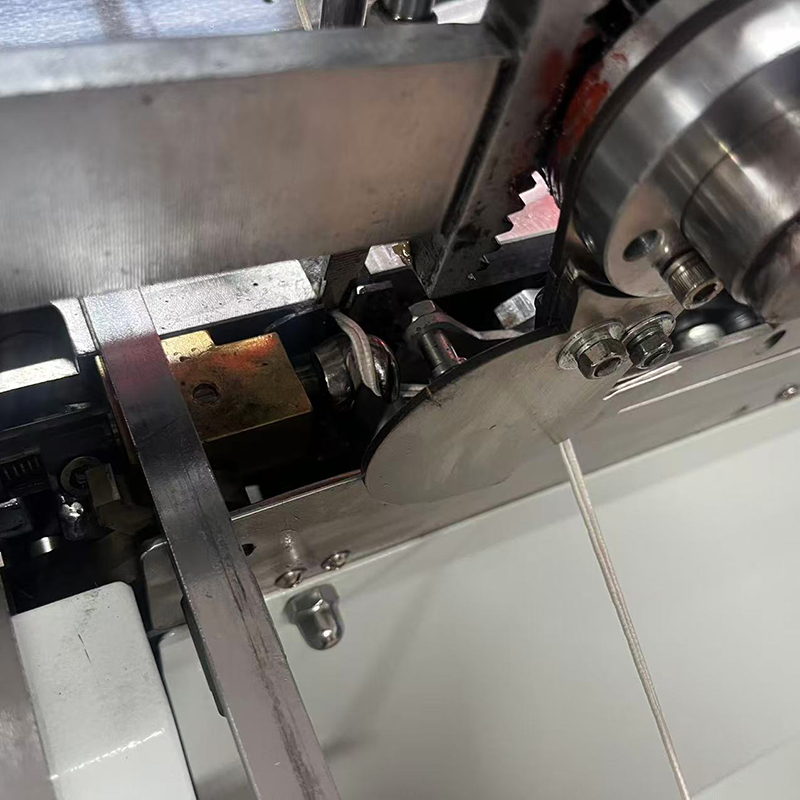

Knotting mechanism
Finished product discharging unitSpecifications
| Hang Tag Tying Machine | |
| Model | UM-TL8-K |
| Speed | 3600-6000pcs/h |
| Cutting method | Cold cut |
| Weight | 450kg |
| Dimensions | 1100*1000*1200mm |
| Power supply | 220V, single phase, 50/60Hz |
| Power | 0.75kW |

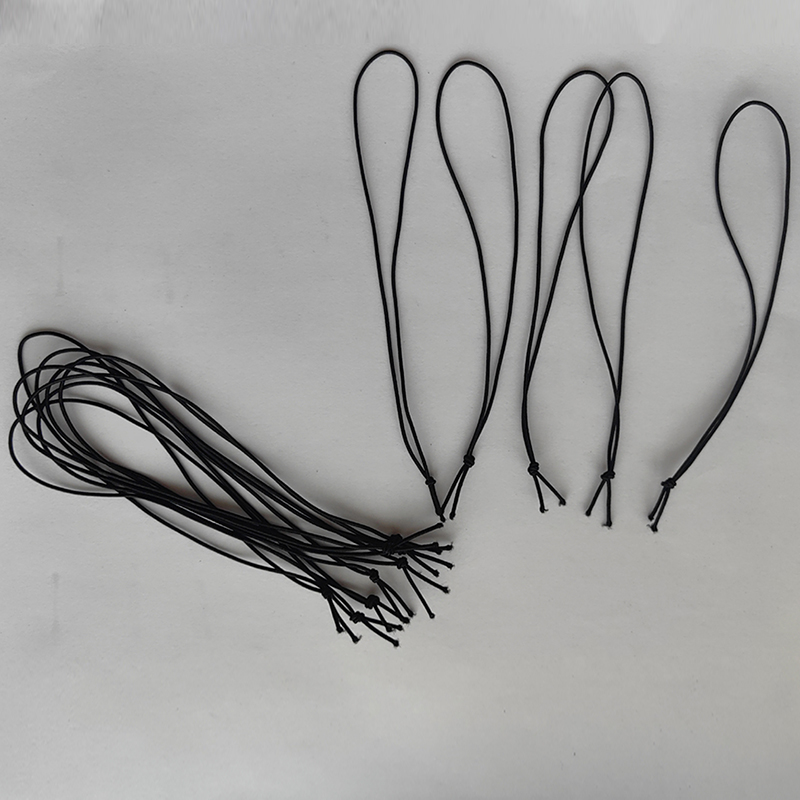

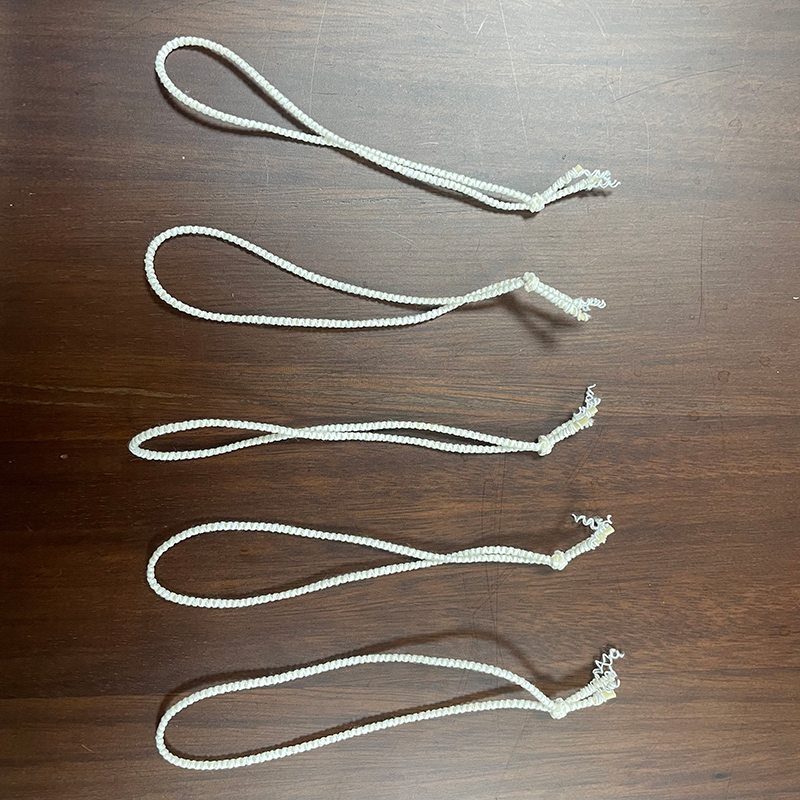

| Tag String | |
| String thickness | 0.3-1.35mm |
| String material | Elastic string |
| Knotted string working length | 80-200mm (tail is excluded) |
| Knotted string tail length | 15-20mm |
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing
machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for
punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can
provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing
the right type of tag stringing machine to meet you or your customers’ requirements.
