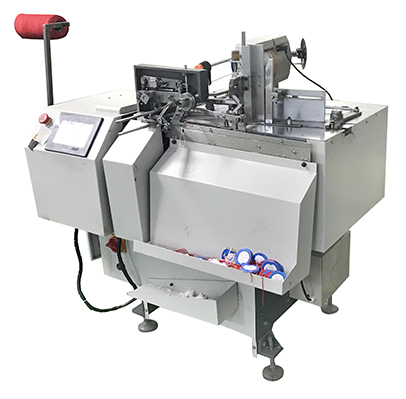

Automatic Hang Tag Stringing Machine, LM-LY3

Automatic Hang Tag Stringing Machine, LM-LY3

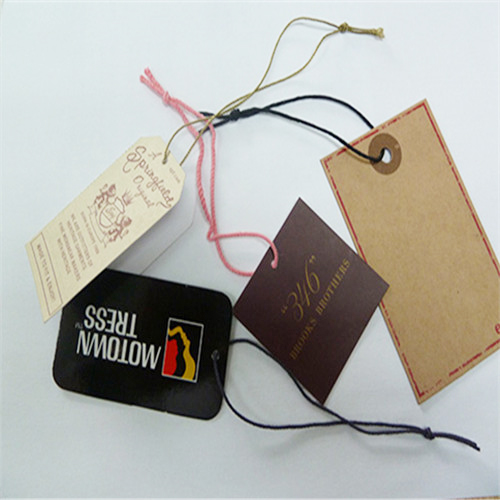

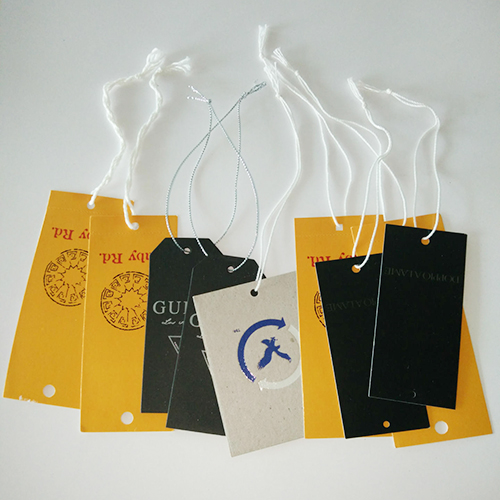

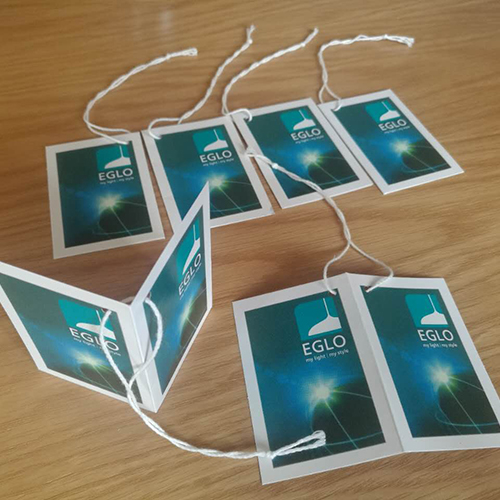

Hang Tag Samples
Hang Tag Samples
Hang Tag Samples

LM-LY3 fully automatic hang tag stringer is a high speed tag stringing machine designed to tie the string with thickness less than 1.2mm, it is typically suitable for stringing swing tags, hang tickets, clothing labels, bookmarks, luggage labels, etc. This tag stringer can automatically accomplish tag loading, hole punching, stringing, knotting and counting in one pass.

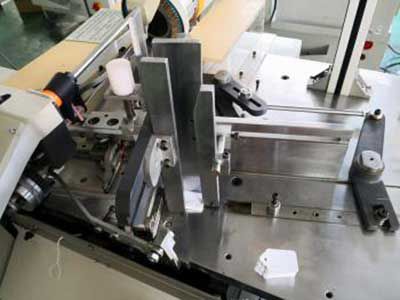

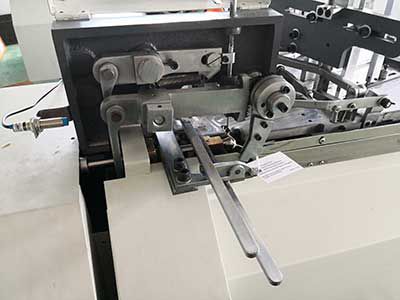

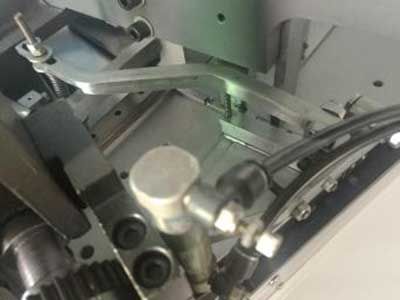

Details
Details
Details
Details
Specifications
Hang Tag Stringing Machine
Speed 4800-5000pcs/hr
Cutting method Cold cut
Weight 416kg
Dimensions 1020*950*1490mm
Power supply 220V, single phase, 50/60HZ
Power 0.75kW
Hang Tag
Tag material Paper tag, plastic tag
Tag thickness 150gsm-700gsm (for other thicknesses, machine is customizable per your sample)
Min. tag size 20*35mm
Max. tag size 90*150mm
Tag hole diameter 3.0mm, 4.0mm, 5.0mm
Tag shape Rectangle, square, round, oval, and other regular shapes
String thickness 0.3-1.2mm, 0.3-2.1mm
String material Cotton string, fiber string, nylon string, etc.
Knotted string working length 80-200mm (tail is excluded)
Knotted string tail length 10-15mm
Applications
  • Garments & Apparels
  • Jewelry
  • Luggage & Bags
  • Home Furnishings
  • Footwear
  • Kids Toys
  • Sunglasses
  • Kitchenware
  • Wine & Liquor
  • Foodstuffs
  • Hair Clips
  • and more…
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing the right type of tag stringing machine to meet you or your customers’ requirements.
