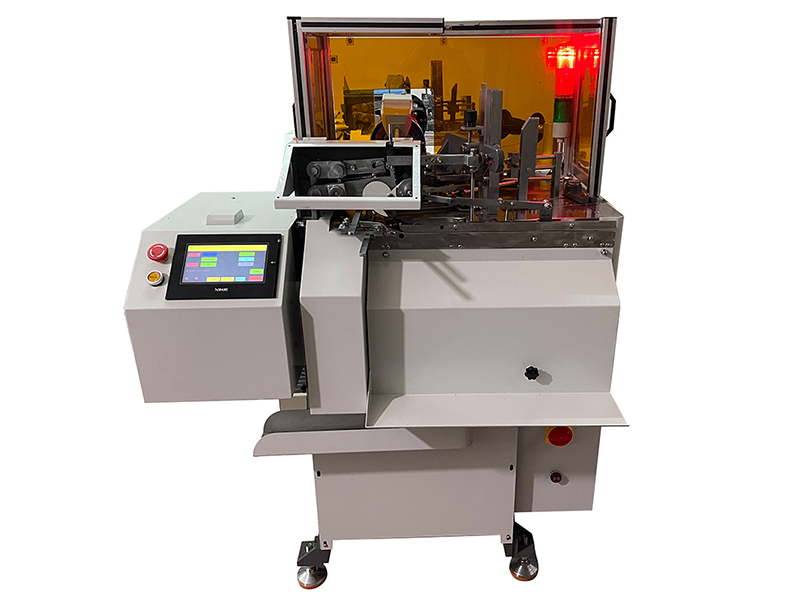

Automatic Tag Stringing Machine, TL-UM8

Automatic Tag Stringing Machine, TL-UM8

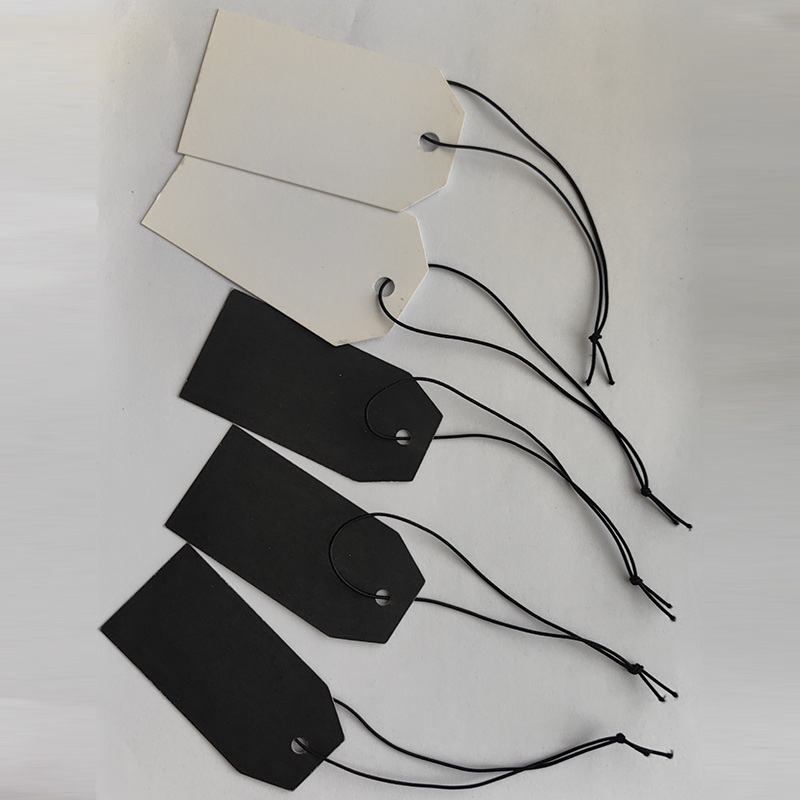

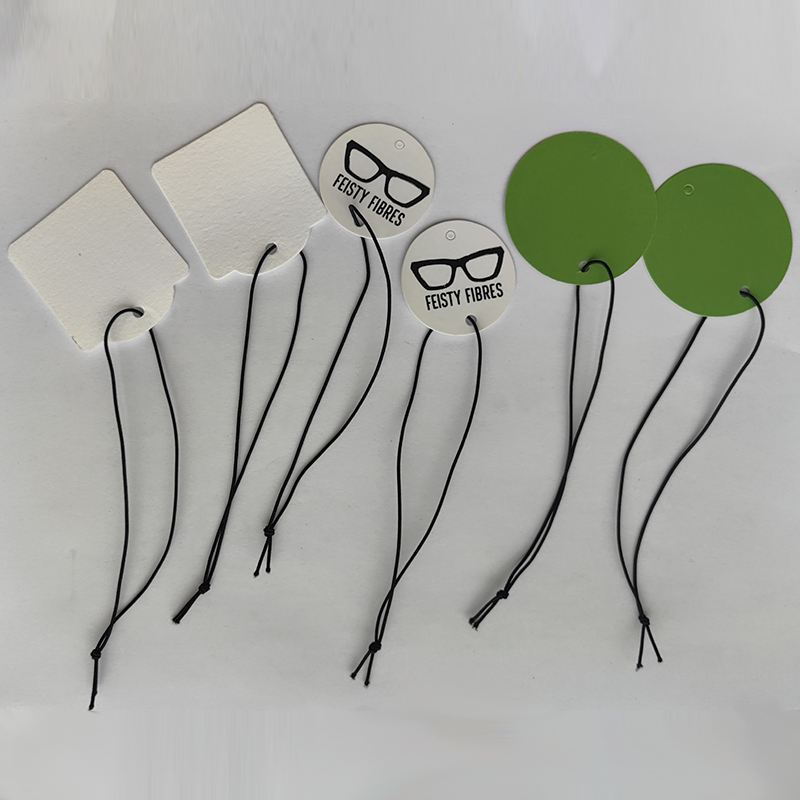

Hang Tag Samples
Hang Tag Samples

Engineered specifically for today’s popular paper tags, our fourth-generation automatic tag stringing machine delivers effortless setup, seamless operation, and easy maintenance.

Compared to the TL-LY8 model, it boasts enhanced stability, faster speeds, and quieter performance, automatically handling tag feeding, punching, stringing, knotting, and counting in one smooth process.

Designed exclusively for the printed tag industry, it eliminates the challenges of manual threading, boosting productivity and precision for your business.

Main Features: PLC control system + touchscreen + frequency converter + sensors + indexing device driven by gear box + counter

Details
Tag feeding deviceTag feeding device
Hole punching unitHole punching unit
String feeding deviceString feeding device
Knotting mechanismKnotting mechanism
Specifications
Hang Tag Stringing Machine
Model TL-UM8
Speed 3600-6000pcs/h
Cutting method Cold cut
Weight 450kg
Dimensions 1100*1000*1200mm
Power supply 220V, single phase, 50/60Hz
Power 0.75kW
Hang Tag
Tag material Paper
Tag thickness 180-350gsm (for other thicknesses, machine is customizable per your sample)
Min. tag size 20*35mm
Max. tag size 90*180mm
Tag hole diameter 3.0mm, 4.0mm, 5.0mm
Tag shape Various irregular shapes
String thickness 0.3-1.2mm
String material Elastic string
Knotted string working length 80-200mm (tail is excluded)
Knotted string tail length 15-20mm
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing the right type of tag stringing machine to meet you or your customers’ requirements.
