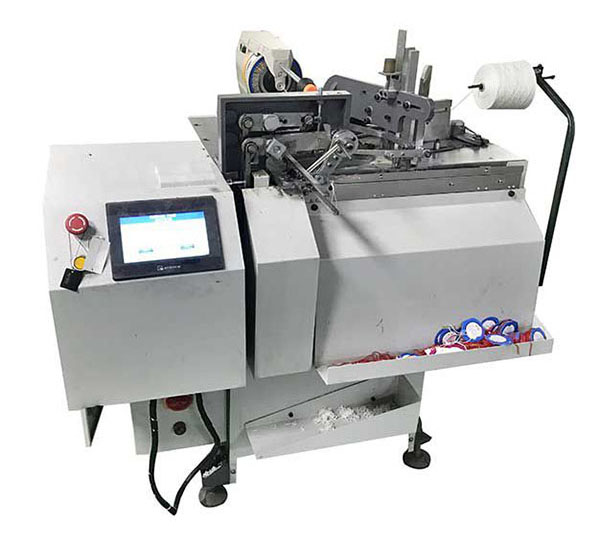

Automatic Hang Tag Stringing Machine (Hot Cut), LM-LY3-CH
LM-LY3-CH fully automatic hang tag stringer is our self-developed tag stringing machine typically designed for stringing swing tags, hang tickets, clothing labels, bookmarks, luggage labels, etc. This tag stringer can automatically accomplish tag loading, hole punching, stringing, knotting and counting in one pass. In contrast to our LM-LY3-C automatic tag stringer that uses cold cutting method, this LM-LY3-CH version implements hot cutting of strings and ribbons.
Specifications
| Hang Tag Stringing Machine | |
| Model | LM-LY3-CH |
| Speed | 3000-3600pcs/hr |
| Cutting method | Hot cut |
| Weight | 416kg |
| Dimensions | 1020*950*1490mm |
| Power supply | 220V, single phase, 50/60HZ |
| Power | 0.75KW |
| Hang Tag | |
| Tag material | Paper tag, plastic tag |
| Tag thickness | 150gsm-700gsm (for other thicknesses, machine is customizable per your sample) |
| Min. tag size | 20*35mm |
| Max. tag size | 90*150mm |
| Tag hole diameter | 3.0mm, 4.0mm, 5.0mm |
| Tag shape | Rectangle, square, round, oval, and other regular shapes |
| String thickness | 0.3-2.1mm |
| String material | Cotton string, fiber string, nylon string, ribbon, etc. |
| Knotted string working length | 80-200mm (tail is excluded) |
| Knotted string tail length | 10-15mm |
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines
including tag stringing
machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing
high productivity for
punching, string, looping and knotting. Together with various options of automatic stringers, our
experienced staff can
provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to
assist you in choosing
the right type of tag stringing machine to meet you or your customers’ requirements.
