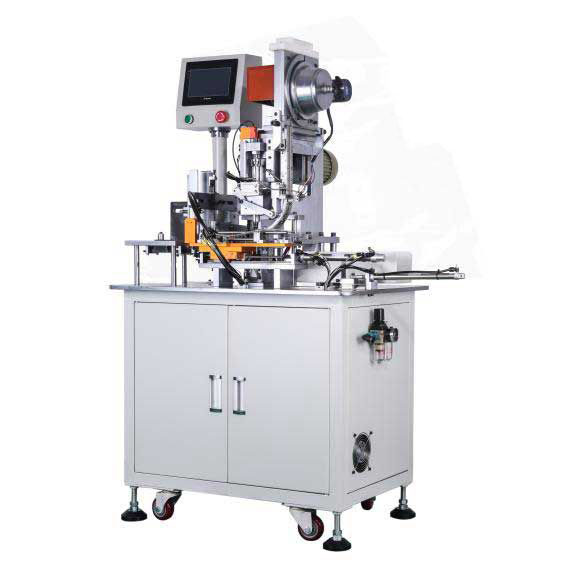

Automatic Hang Tag Eyeleting Machine, LM-JY3

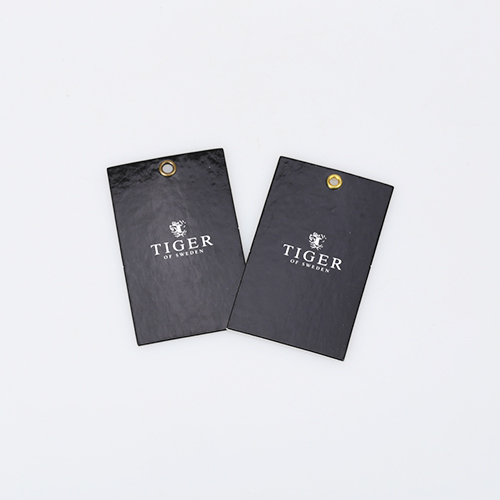

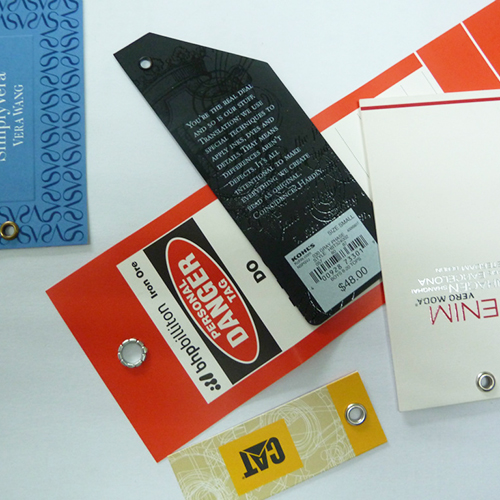

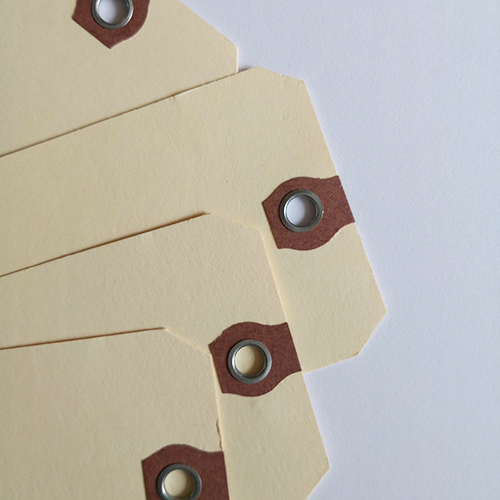

LM-JY3 automatic hang tag eyeleting machine is typically designed for attaching eyelets on various types of tags, the speed of machine reaches approximately 4000 pieces per hour. This automatic eyeleting machine can automatically accomplish tag loading, hole punching, eyelet attaching, tag collecting, counting in one pass. Equipped with control system consisting of variable frequency drive, PLC control, touch screen and sensor, the eyeleting machine is easy and safe to run, and molds can be changed easily. The produced eyelet tags are widely used in garments, luggage, car air fresheners, and other industries.
The loading unit used in LM-JY3 hang tag eyeleting machine is suitable for loading eyelets of international standard size. Movable wheels allow the machine to be easily transported, greatly reducing labor intensity.
| Hang Tag Stringing Machine | |
| Model | LM-JY3 |
| Speed | 3000-4000pcs/hr |
| Weight | 200kg |
| Dimensions | 880*1050*1570mm |
| Power supply | 220V, single phase, 50/60HZ |
| Power | 0.75KW |
| Hang Tag | |
| Tag material | Paper tag |
| Tag thickness | 150gsm-700gsm (for other thicknesses, machine is customizable per your sample) |
| Stacking height of paper tags | 250mm |
| Min. tag size | 20*40mm |
| Max. tag size | 90*150mm |
| Tag hole diameter | 5mm or more |
| Tag shape | Rectangle, square, round, oval, and other regular shapes (custom-made mold) |
| Inner diameter of eyelet | 2.6-6mm |
