Automatic Paper Air Freshener Stringing Machine, TL-LY8-U2

Automatic Paper Air Freshener Stringing Machine, TL-LY8-U2

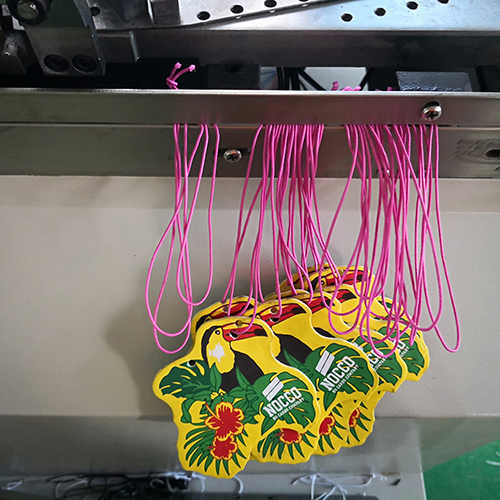

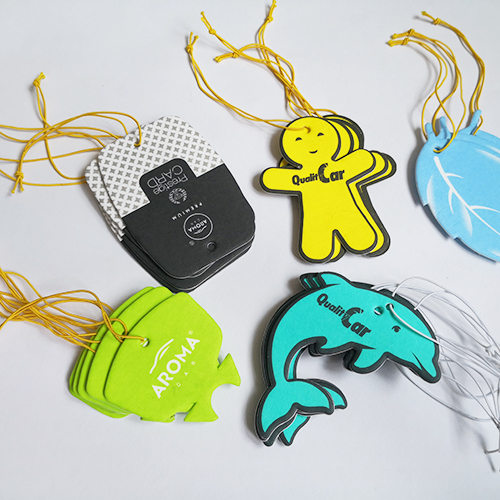

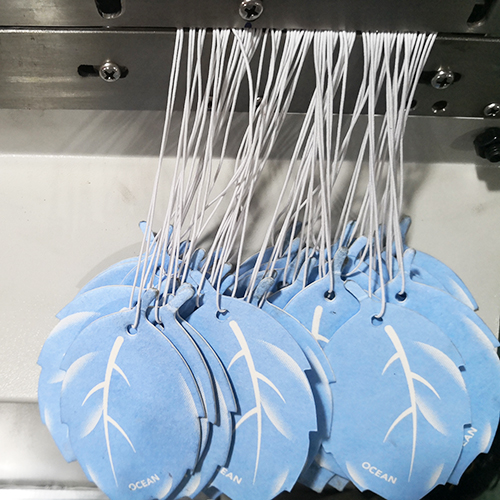

Hang Tag Samples
Hang Tag Samples
Hang Tag Samples

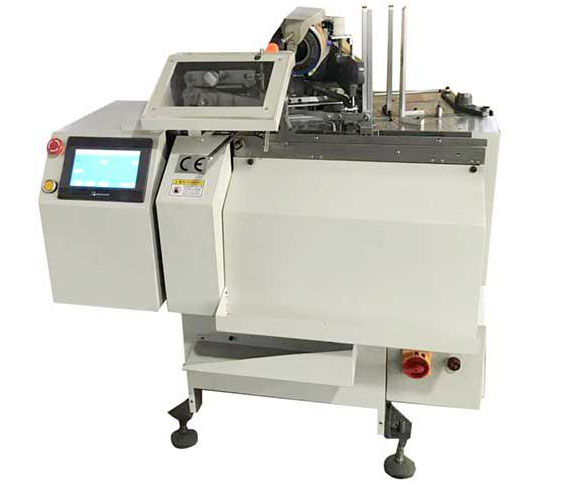

TL-LY8-U2 automatic stringer is our second generation of tag stringing machines specially developed for stringing paper car air fresheners with various shapes. It can automatically accomplish tag loading, hole punching, stringing, knotting and counting in one pass. In contrast to our TL-LY8-U automatic stringer that has no hole punching function, this TL-LY8-U2 version can conduct automatic hole punching for various shaped car air fresheners.

Specifications of Paper Air Freshener Stringing Machine
Hang Tag Stringing Machine
Model TL-LY8-U2
Speed 3600-4000pcs/hr
Cutting method Cold cut
Weight 416kg
Dimensions 1020*950*1490mm
Power supply 220V, single phase, 50/60HZ
Power 0.75KW
Hang Tag
Tag material Paper car air freshener
Tag thickness 150gsm-700gsm (for other thicknesses, machine is customizable per your sample)
Min. tag size 20*35mm
Max. tag size 90*150mm
Tag hole diameter 3.0mm, 4.0mm, 5.0mm
Tag shape Rectangle, square, round, oval, and other regular shapes
String thickness 0.3-1.2mm
String material Elastic string
Knotted string working length 80-200mm (tail is excluded)
Knotted string tail length 10-15mm
Features
  • Easy to use, simple to maintain;
  • Available in PLC control or button control;
  • Efficient alternative to manual stringing, playing essential role in car air freshener production;
With over 15 years, UNIVERSAL MACHINERY has been specializing in supplying packaging machines including tag stringing machine, tag-tying machine and eyeleting equipment. Our tag stringers are capable of providing high productivity for punching, string, looping and knotting. Together with various options of automatic stringers, our experienced staff can provide you right tag stringing solutions for your applications. We at UNIVERSAL MACHINERY aim to assist you in choosing the right type of tag stringing machine to meet you or your customers’ requirements.
Inquiry
Other Products

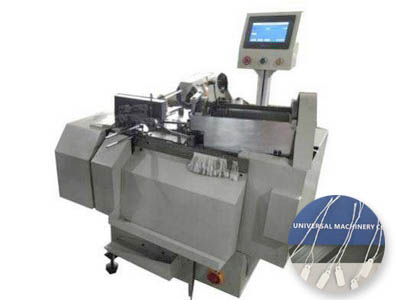

Automatic Hang Tag Stringing Machine (for Jewelry Tags), LM-LY3-P
