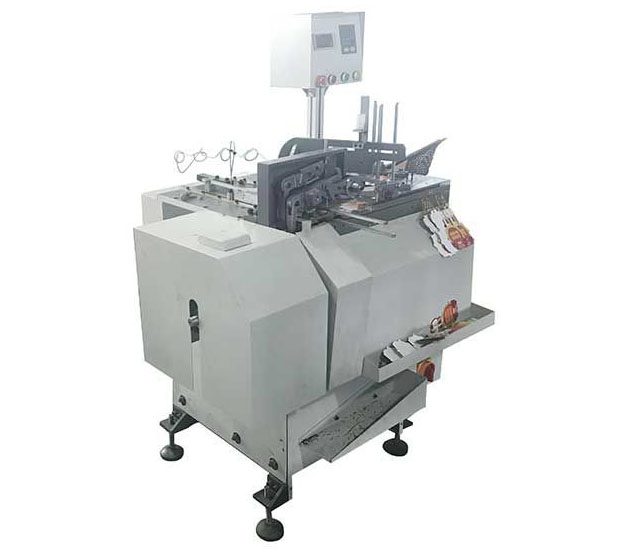

- Automatic Hang Tag Elastic Stringing Machine, TL-LY5
Fully automatic hang tag elastic stringing machine is our newly developed high speed tag tying machine suitable for stringing swing tags, hang tickets, clothing labels, bookmarks, luggage labels, etc. This tag stringer can automatically accomplish tag loading, hole punching, stringing, knotting and counting in one pass. In contrast to TL-LY8 automatic tag stringer that can tie both non-elastic string and elastic string, our TL-LY5 and TL-LY5 models are only suitable for tying short elastic strings, the length of knotted string is approximately 60mm.
Hang Tag Stringing Machine | |
Model | TL-LY5 |
Speed | 4800-5000pcs/hr |
Cutting method | Cold cut |
Weight | 416kg |
Dimensions | 1020*950*1490mm |
Power supply | 220V, single phase |
Power | 0.75KW |
Hang Tag | |
Tag material | Paper tag, plastic tag |
Tag thickness | 150gsm-700gsm (for other thicknesses, machine is customizable per your sample) |
Min. tag size | 20*35mm |
Max. tag size | 90*150mm |
Tag hole diameter | 3.0mm, 4.0mm, 5.0mm |
Tag shape | Rectangle, square, round, oval, and other regular shapes |
String thickness | 0.3-2.1mm, ribbon width:< =4mm |
String material | Elastic string, cotton string, fiber string, nylon string, etc. |
Knotted string working length | 55-100mm (45-50mm customizable) |
Knotted string tail length | 8-10mm |
